LCD Screen DMX Master Controller , LED Controller with 580 Color Change modes

LCD Screen DMX Master Controller , LED Controller with 580 Color Change modes

MOQ: 10pcs
Standard Packaging: L260×W132×H46mm, G.W. 760g
Delivery Period: 2~15 Days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100000pcs per month
Detail Information
Place of Origin
Guangdong China
Brand Name
LT-Series Controller
Certification
CE, ROHS, FCC, ISO 9001:2008
Model Number
CL-LT800
Item Type:
DMX Master Controller
Working Voltage:
DC12VDC
Power Consumption:
<2W
Output Signal:
DMX512
Output Loop:
1 Port
Transmission Speed:
250Kbps
Change Mode:
580 Modes
Control Quantity:
512 DMX Channels( 170 Pixels)
Dimming Range:
0~100%
Warranty:
5 Years
Minimum Order Quantity:
10pcs
Packaging Details:
L260×W132×H46mm, G.W. 760g
Delivery Time:
2~15 Days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100000pcs per month
High Light:

led strip controller

,

led dmx decoder

Product Description

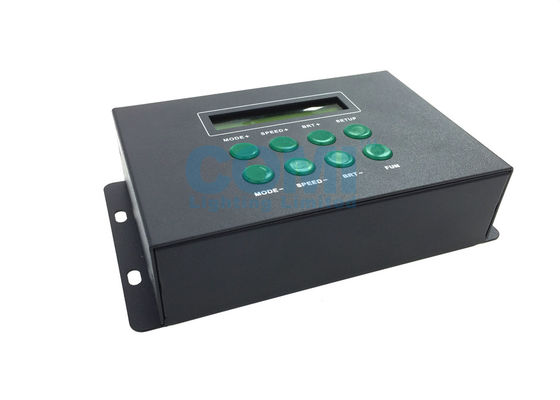

CL-LT800 LCD Screen DMX Master LED Controller with 580 Color Change modes and RF Remote, Controlled by Push-botton or Remote Controller, Included 110~240VAC to 12VDC Adaptor







CL-LT-800 DMX512 Controller is the output signal of international standard DMX/1990. It not only can control all the DMX LED lights in the market as long as can receiving the standard DMX signal, but also can work with our DMX Decoder to control general LED lights without DMX512 IC/Chip inside.



CL-LT-800 DMX512 Controller is easy to operate with a LCD screen. available with RF wireless control and keying control on the changing modes, speed and brightness, automatic timing and more than 580 modes for your choices.



Performance Features:

  • With LCD screen,easy to operate in showing all functions.
  • Built-in perpetual calendar, real-time display system clock, can be set up to play different programs in any time, Monday to Sunday or holiday.
  • 580 lighting modes such as, full 7 color, skipping synchronism, smooth synchronism, color flow, color chasing, color smooth and flow and Meteor shower trailing, etc.
  • Multilevel changing speed, brightness and RGB grey scale adjustment for your choices.
  • Feel free to define many changing modes into a step, 8 independent cycle steps maximum.
  • Output with international Standard signal DMX512/1990, can control 512 DMX channels( 170 full color RGB pixels)
  • Support different output ports like standard XLR-3,RJ45 and Green terminal. etc.
  • With the functions of anti-interference and automatic breakdown recovery.



Product Parameters:

Working Voltage DC12 (with an adapter to convert AC100-240V to DC12V, included)
Power Consumption <2W
Output Signal DMX512
Output Loop 1 Port
Transmission Speed 250Kbps
Change mode 580 modes
Control Quantity 512 DMX channels( 170 pixels)
Dimming range 0~100%
Working Temperature -30℃~65℃
Product Dimensions L163×W108×H40mm
Package Dimensions L260×W132×H46mm
Weight(G.W) 760g





LCD Screen DMX Master Controller , LED Controller with 580 Color Change modes 0



LCD Screen DMX Master Controller , LED Controller with 580 Color Change modes 1

LCD Screen DMX Master Controller , LED Controller with 580 Color Change modes 2LCD Screen DMX Master Controller , LED Controller with 580 Color Change modes 3







Typical Wiring Diagram:





1. Connect to the LED lamps with DMX chip inside:





LCD Screen DMX Master Controller , LED Controller with 580 Color Change modes 4





2. Connect to the LED Lamps without DMX chip inside, it is required extra external DMX decoders



LCD Screen DMX Master Controller , LED Controller with 580 Color Change modes 5





For more information or PDF Technical Specification or instructions about this DMX master controller (DMX console), please feel free to contact us separately.
