Product Details:
|
| Item Type: | PWM RGB LED Controller | Input Voltage: | DC12V~DC24V |
|---|---|---|---|
| Max Current Load: | 6A/CH X3 Max18A | Max Output Power: | 216W/432W(12V/24V) |
| Scale Levels: | 4096×4096×4096 | Control Button: | 8 Press Buttons |
| Function Mode: | 32 Modes | Remote Control Distance: | 100m |
| Radio Frequency Range: | 433.92MHz | RF Remote Output Power: | 8mW |
| Dimension: | L211×W40×H30(mm) | Warranty: | 5 Years |
| High Light: | dmx decoder controller,led dmx decoder |
||

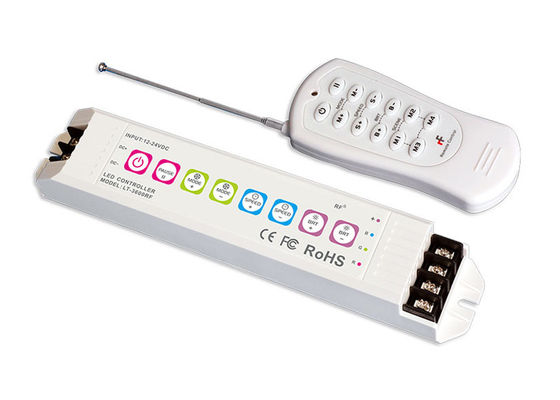

CL-LT-3600RF 12~24VDC 6A * 3 CH 32Modes Multi function RGB LED Controller with 8 Press Buttons on Receiver and RF Remote Controller
Platinum series LED controller is a universal RGB controller for entire color changing, which adopts the most advanced PWM (Pulse-Width Modulation) controlling technology. PC engineering plastic panel with T-Touch/soft-touch function button and exquisite appearance. Widely controlled for RGB full color LED module, LED strip,LED SMD tape and all resistance of the current limit LED lighting products.
Performance Features:
1. Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.
2. 4096 levels of grey scale per RGB, even & smooth for color gradual changes, without any flashes.
3. 16/32 fantastic modes such as color smooth , color skipping, horserace, strobe, etc.
4. Can stop at static single color, speed & brightness adjustable at pause status.
5. Working with power repeater to expand power output unlimitedly.
Product parameter:
Input voltage: DC12V~DC24V
Max current load: 6A/CH x3 Max18A
Max output power: 216W/432W(12V/24V)
Scale levels: 4096×4096×4096
Control button: 8 Press buttons
Function Mode: 32 modes
Remote control distance: 100m
Radio Frequency Range: 433.92MHz
RF Remote Output Power: 8mW
working temperature: -30℃~55℃
Dimension: L211×W40×H30(mm)
Package Size: L313×W50×H32(mm)
Weight (G.W): 250g
Typical Wiring Diagram:
