| MOQ: | 50pcs |
| Standard Packaging: | (50W/80W/100W/) 1piece/G.W. 15.5KGs/Voume Weight 20KGs/76*59*22cm/Carton |
| Delivery Period: | 3-7days for samples, 10-18days for mass quantity order |
| Payment Method: | T/T, Western Union, L/C |

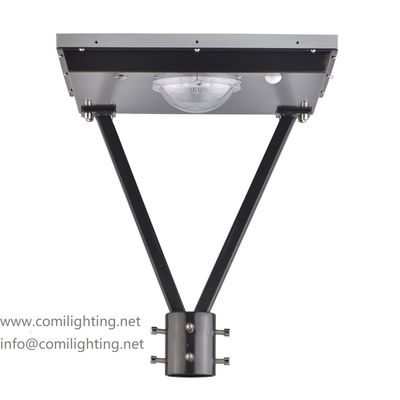

SLD-xxW-AR-C is an series solar Sqaure Solar Led Post Top Light With PIR Sensor&Time Controller together and optional PWM controller and MPPT controller which power by Ternary Li-ion battery( LiFePO4 battery optional) , available wattage from 15~100W (15W, 20W, 25W, 40W, 50W, 80W, 100W) which with high light efficiency up to 150LM/W. With High efficiency imported silicon solar cell, it only taken 6-7hours(with enough strong shine) for charge time. High quality products with 5 years warranty and IP66 rated design enables this high lumen output and high light efficiency outdoor solar powered lamp post light widely used for area roadway lighting, roadway lighting, Parking areas lighting, Airports lighting, Streetscapes lighting, Campuses lighting and etc.
Features:
1. Power of Post top led solar lights available : 15W, 20W, 25W, 40W, 50W, 80W, 100W;
2. High Efficiency: 120LM/W~150LM/W.
3. High efficiency imported silicon solar cell, only 6-7hours(with enough strong shine) charge time;
4. Standard product is with PIR Sensor&Time Controller together , optional PWM controller and MPPT controller.
5. Ternary Li-ion battery( LiFePO4 battery optional).
6. CCT(K): 2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW ;
7. Elbow pipe: 2-elbow pipes,4-elbow pipes.(Standard:2-elbow pipes)
8. Cover options: Dome PC cover; Flat lens cover(just for the models≤40W ). (standard:Dome PC cover).
9. Environment friendly ,energy saving (70~80%);
10. Standard 3 years warranty (5 years warranty is available);
11. CE/ROHS.
| Power | 100W |
| Model | SLD-100W -AR-C3 |
| Solar panel Max power | 18V/120W |
| Luminous Flux | 12000lm |
| Mounting Height | 9-10m |
| Space Bettwen Light | 40-50m |
| Solar Panel Size | 680*510*41mm |
| Sensor | Stanard: PIR Sensor&Time Controller together |
| Optional Controller | PWM controller, MPPT controller optional (Non-standard version) |
| Charge Time | 6-7hours(with enough strong shine) |
| Discharge Time | More than 10-12hours |
| Battery | Ternary Li-ion battery, LiFePO4 battery optional |
| Solar Cell | High efficiency imported silicon solar cell |
| Operation Temp | -40 to +45℃ |
| CCT | 2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW |
| Life Span | 50,000 hours |
| IP | IP65 |
| Warranty | 3 Years (5 years warranty is available) |
Timmer Control & PIR Sensor Control :
1.If with insufficient ambient light,sensored dark,lamp will on. First Time Phase 4 hours , When motion is detected,it will 100% brightness. When no motion detected after hold time 30s, and then switches to 30% brightness after stand-by period.
2.Second Time Phase 3 hours.When motion is detected,it will 60% brightness. When no motion detected after hold time 30s,and then switches to 20% brightness after stand-by period.
3.Third Time Phase 3 hours.When motion is detected,it will 30% brightness. When no motion detected after hold time 30s, and then switches to 20% brightness after stand-by period.
4.Forth Time Phase 6 hours.When motion is detected,it will 70% brightness. When no motion detected after hold time 30s,and then switches to 30% brightness after stand-by period. 5.While sensored daytime,lamp will off.
*Note : IoT Smart Control , MPPT Smart Control all available in 20w 25w 50w. If you need know more,pls contact salesman.
Type of elbow pipe options for SOLAR LED Post top light
Cover lens type for solar post top LED Outdoor lighting fixtures
| Power | 15W | 20W | 25W | 20W | 25W | 40W | 50W | 80W | 100W |
| Model | SLD-15W-AR-C1 | SLD-20W-AR-C1 | SLD-25W-AR-C1 | SLD-20W-AR-C2 | SLD-25W-AR-C2 | SLD-40W-AR-C2 | SLD-50W-AR-C3 | LD-80W-AR-C3 | LD-100W-AR-C3 |
| Solar Panel Max Power | 18V/18W | 18V/27W | 18V/30W | 18V/27W | 18V/30W | 18V/45W | 18V60W | 18V/100W | 18V/120W |
| Luminous Flux(lm) | 2250 LM | 2400LM | 3000LM | 3000LM | 3750LM | 5000LM | 7500LM | 9600LM | 12000LM |
| Light Efficiency | 150LM/W | 120LM/W | 120LM/W | 150LM/W | 150LM/W | 120LM/W | 120LM/W | 120LM/W | 120LM/W |
| Mounting Height | 3-4m | 3-5m | 3-5m | 3-5m | 3-5m | 6-7m | 8-9m | 9-10m | 9-10m |
| Distance between Lights | 5-10m | 10-15m | 10-15m | 10-15m | 10-15m | 15-20m | 20-30m | 30-40m | 40-50m |
| Solar Panel Size(mm) | 350*350*41 | 350*350*41 | 350*350*41 | 410*365*41 | 410*365*41 | 410*365*41 | 680*510*41 | 680*510*41 | 680*510*41 |
|
|
| MOQ: | 50pcs |
| Standard Packaging: | (50W/80W/100W/) 1piece/G.W. 15.5KGs/Voume Weight 20KGs/76*59*22cm/Carton |
| Delivery Period: | 3-7days for samples, 10-18days for mass quantity order |
| Payment Method: | T/T, Western Union, L/C |
SLD-xxW-AR-C is an series solar Sqaure Solar Led Post Top Light With PIR Sensor&Time Controller together and optional PWM controller and MPPT controller which power by Ternary Li-ion battery( LiFePO4 battery optional) , available wattage from 15~100W (15W, 20W, 25W, 40W, 50W, 80W, 100W) which with high light efficiency up to 150LM/W. With High efficiency imported silicon solar cell, it only taken 6-7hours(with enough strong shine) for charge time. High quality products with 5 years warranty and IP66 rated design enables this high lumen output and high light efficiency outdoor solar powered lamp post light widely used for area roadway lighting, roadway lighting, Parking areas lighting, Airports lighting, Streetscapes lighting, Campuses lighting and etc.
Features:
1. Power of Post top led solar lights available : 15W, 20W, 25W, 40W, 50W, 80W, 100W;
2. High Efficiency: 120LM/W~150LM/W.
3. High efficiency imported silicon solar cell, only 6-7hours(with enough strong shine) charge time;
4. Standard product is with PIR Sensor&Time Controller together , optional PWM controller and MPPT controller.
5. Ternary Li-ion battery( LiFePO4 battery optional).
6. CCT(K): 2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW ;
7. Elbow pipe: 2-elbow pipes,4-elbow pipes.(Standard:2-elbow pipes)
8. Cover options: Dome PC cover; Flat lens cover(just for the models≤40W ). (standard:Dome PC cover).
9. Environment friendly ,energy saving (70~80%);
10. Standard 3 years warranty (5 years warranty is available);
11. CE/ROHS.
| Power | 100W |
| Model | SLD-100W -AR-C3 |
| Solar panel Max power | 18V/120W |
| Luminous Flux | 12000lm |
| Mounting Height | 9-10m |
| Space Bettwen Light | 40-50m |
| Solar Panel Size | 680*510*41mm |
| Sensor | Stanard: PIR Sensor&Time Controller together |
| Optional Controller | PWM controller, MPPT controller optional (Non-standard version) |
| Charge Time | 6-7hours(with enough strong shine) |
| Discharge Time | More than 10-12hours |
| Battery | Ternary Li-ion battery, LiFePO4 battery optional |
| Solar Cell | High efficiency imported silicon solar cell |
| Operation Temp | -40 to +45℃ |
| CCT | 2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW |
| Life Span | 50,000 hours |
| IP | IP65 |
| Warranty | 3 Years (5 years warranty is available) |
Timmer Control & PIR Sensor Control :
1.If with insufficient ambient light,sensored dark,lamp will on. First Time Phase 4 hours , When motion is detected,it will 100% brightness. When no motion detected after hold time 30s, and then switches to 30% brightness after stand-by period.
2.Second Time Phase 3 hours.When motion is detected,it will 60% brightness. When no motion detected after hold time 30s,and then switches to 20% brightness after stand-by period.
3.Third Time Phase 3 hours.When motion is detected,it will 30% brightness. When no motion detected after hold time 30s, and then switches to 20% brightness after stand-by period.
4.Forth Time Phase 6 hours.When motion is detected,it will 70% brightness. When no motion detected after hold time 30s,and then switches to 30% brightness after stand-by period. 5.While sensored daytime,lamp will off.
*Note : IoT Smart Control , MPPT Smart Control all available in 20w 25w 50w. If you need know more,pls contact salesman.
Type of elbow pipe options for SOLAR LED Post top light
Cover lens type for solar post top LED Outdoor lighting fixtures
| Power | 15W | 20W | 25W | 20W | 25W | 40W | 50W | 80W | 100W |
| Model | SLD-15W-AR-C1 | SLD-20W-AR-C1 | SLD-25W-AR-C1 | SLD-20W-AR-C2 | SLD-25W-AR-C2 | SLD-40W-AR-C2 | SLD-50W-AR-C3 | LD-80W-AR-C3 | LD-100W-AR-C3 |
| Solar Panel Max Power | 18V/18W | 18V/27W | 18V/30W | 18V/27W | 18V/30W | 18V/45W | 18V60W | 18V/100W | 18V/120W |
| Luminous Flux(lm) | 2250 LM | 2400LM | 3000LM | 3000LM | 3750LM | 5000LM | 7500LM | 9600LM | 12000LM |
| Light Efficiency | 150LM/W | 120LM/W | 120LM/W | 150LM/W | 150LM/W | 120LM/W | 120LM/W | 120LM/W | 120LM/W |
| Mounting Height | 3-4m | 3-5m | 3-5m | 3-5m | 3-5m | 6-7m | 8-9m | 9-10m | 9-10m |
| Distance between Lights | 5-10m | 10-15m | 10-15m | 10-15m | 10-15m | 15-20m | 20-30m | 30-40m | 40-50m |
| Solar Panel Size(mm) | 350*350*41 | 350*350*41 | 350*350*41 | 410*365*41 | 410*365*41 | 410*365*41 | 680*510*41 | 680*510*41 | 680*510*41 |
