Product Details:
|
| Product Name: | IP65 Outdoor Light Sensor & Motion Sensor, Timer Controlled Solar LED Lights | Light Type: | Solar,Energy Saving,led Outdoor Garden Lighting,LED |
|---|---|---|---|
| Power: | 15-100W | Colour Temperature: | 2700K-6700K |
| Controller: | Timer And PIR Motion Sensor | Beam Angle: | 120degree |
| Remote: | Optional Remote Controller, Standard Is NOT Included | Solar Panel: | 18V, 18-120W |
| Battery: | Lithium Battery | Material: | PC+Aluminum Alloy |
| Application: | Garden,Garden Square Park,LANDSCAPE,Residential,Sports Stadiums | Usage: | Outoors Patio Pathway Landscape Garden,Outdoor,garden,Back Yard |
| IP: | IP65 | Warranty: | 3 Years |
| High Light: | 12000lm Solar Post Light,100W Solar Post Light,PWM Controller Solar Pole Lights |
||

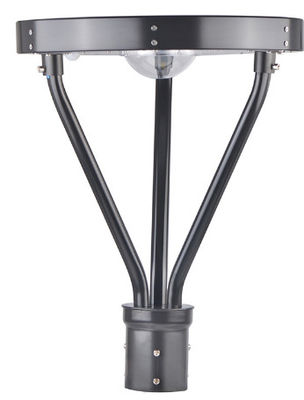

Outdoor solar lamp ,Hight lumen 15-100W Solar post top light for Walking Paths Best Solar Pole Lights
Advantages :
1. Replace conventional Area Lights
2. Precision Die Cast Aluminum Housing
3. Fade Resistant Powder Coat Finish
4. Easy Installation
5. CE ROHS listed
Features:
1. Beam angle:120 degrees.
2. Aluminum die-casting heat sinks is good for heat dissipation.
3. It’s major to replace the conventiona area light.
4. Green, energy saving, long and reliable life of 50,000 hours.
5. No RF interference, No IR/UV radiation ,no mercury pollution.
6. Wide colour availability in degrees Kelvin(K),2700-6700K.
7. Special circuit design, each LED work separately, avoiding the single broken LED influence problem.
8. Streamline exterior design, beautiful appearance.
9. Environment friendly ,energy saving (70~80%)
Parameters
|
led max power |
15w |
20w |
25w |
20w |
25w |
40w |
50w |
80w |
100w |
|
Model No. |
SLD-15W -AR-B1 |
SLD-20W -AR-B1 |
SLD-25W -AR-B1 |
|
|
|
|
|
|
|
solar model max power |
18W/18W |
18V/27W |
18V/30W |
18V/25W |
18V/27W |
18V/45W |
18V/60W |
18V/100W |
18V/120W |
|
Lumens |
2250lm |
2400lm |
3000lm |
3000lm |
3600lm |
5000lm |
7600lm |
9000lm |
12000lm |
|
Lumunious efficacy |
150lm/w |
120lm/w |
120lm/w |
150lm/w |
150lm/w |
120lm/w |
150lm/w |
120lm/w |
120lm/w |
|
Mounting height |
3-4m |
3-5m |
3-5m |
3-5m |
3-5m |
6-7m |
8-9m |
9-10m |
9-10m |
|
Two lights space |
5-10m |
10-15m |
10-15m |
10-15m |
10-15m |
15-20m |
20-30m |
30-40m |
40-50m |
|
solar panel Dimention |
Dia405*41mm |
Dia504*41mm |
Dia850*41mm |
||||||
|
Sensor |
Default: PIR Sensor&time controller together |
||||||||
|
Controller |
PWM controller,MPPT controller opptional |
||||||||
|
Battery |
Ternary Li-ion battery,LifePO4 battery opptional |
||||||||
|
Discharge time |
more than 10-14 hours |
||||||||
|
Charge tme |
6-7hours(with enought strong sunshine ) |
||||||||
|
Solar cell |
High efficiency import silicon solar cell |
||||||||
|
Operation Temperature |
-20-+45ºC |
||||||||
|
CCT |
2700-6000K |
||||||||
|
Lifespan |
50,000hours |
||||||||
|
IP Rate |
IP65 |
||||||||
|
Beam angle |
120degree |
||||||||
|
Warranty |
3 years |
||||||||
Application:
1.Area roadway/roadway lighting.
2.Parking areas lighting.
3.Airports lighting.
4.Streetscapes lighting.
5.Campuses lighting.
