| MOQ: | 50pcs |
| Standard Packaging: | 1piece/box, 1piece/G.W. 8KGs/47*27*17cm/ carton |
| Delivery Period: | 5-10days for samples, 14-20days for mass quantity order |
| Payment Method: | T/T, Western Union |
| Supply Capacity: | 100,000pcs/month |

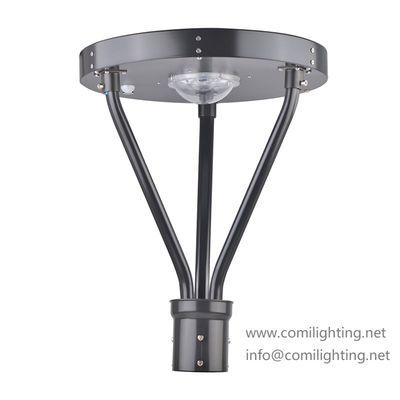

SLD-xxW-AR-B1 is an series Solar LED post top area lighting available in 15W,20W and 25W and with high light efficiency 120LM/W even up to 150LM/W. The product features not only 150LM/W max high efficiency, BUT also with Timmer Control & PIR Sensor Control, which enables the brightness of lighting fixture can be controlled itself automatically by sensing the ambient light and human body and motion, this function helpful for power saving and energy saving. By using our 25W Area Light to replace traditional75W Metal Halide bulb for parking area lighting fixtures,it helps the customer to save a lot per month from his electric bill. High efficiency imported silicon solar cell Solar Panel for the lighting fixture and takes only 6-7 hours to charge the battery packs of the lighting fixture. IP65 desigin. It is widely used for Area roadway/roadway lighting, Parking areas lighting,Airports lighting,street scapes lighting, campuses lighting.
Features:
1. Family product power available in 15W, 20W, 25W, 40W, 50W, 80W, 100W in different lamp sizes.
2. SLD-xxW-AR-B1 optional power: 15W,20W and 25W.
3. High light efficiency:120LM/W even 150LM/W;
4. With Timmer Control to sense the ambient light & PIR Sensor Control.
5. PWM controller, MPPT controller optional.
6. More than 10-12hours Discharge Time and 6-7hours(with enough strong shine) charge time.
7. 3030 SMD LED as its light source.
8. Wide colour temperature availability in Kelvin(K) range 2700-6500K.
9. Environment friendly ,energy saving (70~80%) compared with traditional lighting fixtures.
10. Green, energy saving, long and reliable life of 50,000 hours.
11. 120degree beam angle.
12. IP65 Waterproof for outdoor use.
13. CE, ROHS
14. 3 years warranty (5 years warranty is available).
Techincal Specifications for Round Solar Deck Post Lights:
| Power | 15W | 20W | 25W |
| Model | SLD-15W -AR-B1 | SLD-20W -AR-B1 | SLD-25W -AR-B1 |
| Solar panel Max power | 18V/18W | 18V/27W | 18V/30W |
| Space Bettwen Light | 5-10 | 10-15m | 10-15m |
| Luminous Flux | 2250LM | 2400lm | 3000LM |
| Mounting Height | 3-4m | 3-5m | 3-5m |
| Solar Panel Dimension | Dia405*41mm | Dia405*41mm | Dia405*41mm |
| Sensor(Standard) | PIR Sensor&Time Controller together. | ||
| Controller | PWM controller, MPPT controller optional | ||
| Battery | Ternary Li-ion battery, LiFePO4 battery optional | ||
| Discharge time | >10-12hours | ||
| Charge time | 6-7hours(with enough strong shine) | ||
| Operation Temp | -40 to +45℃ | ||
| LED | 3030 SMD LED | ||
| CCT | 2700K SW / 3000K WW / 4100K NW / 5000K DW / 5700K CW | ||
| Material | Aluminum lamp housing, silicon solar cell, battery | ||
| Life Span | 50,000 hours | ||
| IP | IP65 | ||
| Warranty | 3 Years | ||
| Power | 15W | 20W | 25W | 20W | 25W | 40W | 50W | 80W | 100W |
| Model | SLD-15W-AR-B1 | SLD-20W-AR-B1 | SLD-25W-AR-B1 | SLD-20W-AR-B2 | SLD-25W-AR-B2 | SLD-40W-AR-B2 | SLD-50W-AR-B3 | SLD-80W-AR-B3 | SLD-100W-AR-B3 |
| Solar Panel Max Power | 18V/18W | 18V/27W | 18V/30W | 18V/27W | 18V/30W | 18V/45W | 18V60W | 18V/100W | 18V/120W |
| Luminous Flux(lm) | 2250 LM | 2400LM | 3000LM | 3000LM | 3750LM | 5000LM | 7500LM | 9600LM | 12000LM |
| Light Efficiency | 150LM/W | 120LM/W | 120LM/W | 150LM/W | 150LM/W | 120LM/W | 120LM/W | 120LM/W | 120LM/W |
| Mounting Height | 3-4m | 3-5m | 3-5m | 3-5m | 3-5m | 6-7m | 8-9m | 9-10m | 9-10m |
| Distance between Lights | 5-10m | 10-15m | 10-15m | 10-15m | 10-15m | 15-20m | 20-30m | 30-40m | 40-50m |
| Solar Panel Size(mm) | Dia. 405*41mm | Dia. 540*41mm | Dia. 850*41mm | ||||||
15W, 20W and 25W and other models Family Round Solar Fence Post Lights:
Dimensions:
WORKING CHARACTERISTICS:
Timmer Control & PIR Sensor Control :
1.If with insufficient ambient light,sensored dark,lamp will on. First Time Phase 4 hours , When motion is detected,it will 100% brightness. When no motion detected after hold time 30s, and then switches to 30% brightness after stand-by period.
2.Second Time Phase 3 hours.When motion is detected,it will 60% brightness. When no motion detected after hold time 30s,and then switches to 20% brightness after stand-by period.
3.Third Time Phase 3 hours.When motion is detected,it will 30% brightness. When no motion detected after hold time 30s, and then switches to 20% brightness after stand-by period.
4.Forth Time Phase 6 hours.When motion is detected,it will 70% brightness. When no motion detected after hold time 30s,and then switches to 30% brightness after stand-by period.
5.While sensored daytime,lamp will off.
*Note :
IoT Smart Control , MPPT Smart Control all available in 20w 25w 50w. If you need know more,pls contact salesman.
Remote controller for Solar Post top led lighting fixture:
Note: The remote control is not provided for our standard product,If you need it, please contact sales.
|
|
