| MOQ: | NO MOQ |
| Delivery Period: | 5-8 working days |
| Payment Method: | T/T, Western Union, D/P, D/A, L/C, MoneyGram |

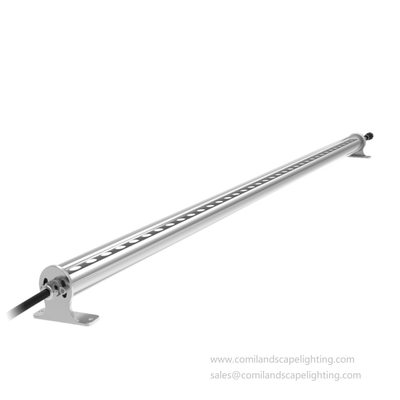

The COMI LANDSCAPE LIGHTING B4RL-series IP68 LED underwater light provides 500mm(actual: 526mm) and 1000mm (actual:1026mm) linear design for option. This linear underwater light is surface mounted by SUS 316Ti stainless steel brackets. IP68 rate design is suitable as underwater light for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.
Features and Benefits:
▪ 500mm(actual: 526mm) and 1000mm (actual:1026mm) length for options.
▪ Surface mounted on wall or ground by SUS 316Ti stainless steel brackets(included).
▪ Light quantity: 12pcs (500mm) and 24pcs (1000mm).
▪ LED: 24pcs 1W CREE high power LED.
▪ Color: single color(2700K, 3000K, 4000K, 5000K, 6000K and etc.), RGB, RGBW.
▪ Input voltage: 24VDC.
▪ Standard constant voltage 24VDC working, Optional constant current 350mA working.
▪ Beam angle: 10°, 30°, 120°.
▪ Materials: Aluminum alloy heat sing, PMMA tube cover, 316Ti stainless steel bracket.
▪ Optional Beam direction adjustable angle of bracket: 120° or 360°.
▪ Support dimming with external remote type DALI, 1-10 V,DMX512 LED driver(NOT incl.)
▪ About Connection for this surface mounted IP68 LED underwater lamp:
(1) Connect the IP68 LED linear lights to power supply in parallel is advised.
(2) Max 5pcs 1meter IP68 LED underwater linear lights connected in series per run.
▪ IP68 waterproof, underwater installation in depth less than 1meter.
▪ CE, RoHS.
▪ 2 Years warranty.
Materials Specifications for IP68 Linear LED Underwater Light with Brackets:
| Light Window&Housing | Ø45mm Round type Transparent PMMA, T=5mm |
| Housing/Heat Sink | 6030 Aluminum alloy ( Built-in round PMMA Tube) |
| Lens | Optical Lens>85% |
| PCB | Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
| Application environment | Temperature of water between -20℃~45℃, less than 1 meter depth underwater |
| End Cap & Brackets (incl.) | SUS 316Ti Stainless Steel |
| Power Cable | ▪ 3meters H05RN-F 2x1.0mm² to open wires (for Single color) ▪ 3meters H05RN-F 4x0.75mm² to open wires (for RGB) ▪ 3meters H05RN-F 5x0.75mm² to open wires (for RGB) |
| Net Weight | 0.9KG for 500mm and 1.8KG for 1000mm |
| Control Support | Dimming with external remote type DALI, 0-10V, TRIAC, DMX512 driver (NOT included) |
Technical Specifications for IP68 Linear LED Underwater Wall Washer Light in Mon, RGB, RGBW color for for Options:
| Item Number |
Length
(mm)
|
Light Color | Light Source | Beam Angle | Input Voltage | Power | Luminous Flux (LM) |
IK Rate |
| B4RL1256 | 526 | Single Color |
12×1W
Cree LED
|
10°, 30°, 120° | 24VDC | 12W |
Cool White=1100
Warm White=850
|
10 |
| B4RL2456 | 1026 | Single Color |
24×1W
Cree LED
|
10°, 30°, 120° | 24VDC | 24W |
Cool White=2200
Warm White=1700
|
10 |
| B4RL1218 | 526 | RGB |
12×1W
RGB 3-in-1
RGB Full Color
|
10°, 30°, 120° | 24VDC | 12W | 300 | 10 |
| B4RL2418 | 1026 | RGB |
24×1W
RGB 3-in-1
RGB Full Color
|
10°, 30°, 120° | 24VDC | 24W | 600 | 10 |
| B4RL1220 | 526 | RGBW |
12×1W
RGBW 4-in-1
Full Color
|
10°, 30°, 120° | 24VDC | 12W | 420 | 10 |
| B4RL2420 | 1026 | RGBW |
24×1W
RGBW 4-in-1
Full Color
|
10°, 30°, 120° | 24VDC | 24W | 840 | 10 |
Notes:
1. Single color: 2700K, 3000K, 4000K, 5000K, 6000K, 6500K, or other color or Kelvin.
2. These IP68 Linear LED Underwater Lights are dimming or working with external remote type DALI, 0-10V, TRIAC, DMX512 driver (Not included);
3. Standard versions are 24VDC constant voltage working, Optional 350mA constant current working.
4. Specifications are subjected to change without notice.
|
|
