Product Details:
|
| Lamp Source: | 6 * 2W Osram LED Or 6*3W 3-in-1 RGB LED | Color: | Single Color Or RGB |
|---|---|---|---|
| Power: | 16.8W(Single Color), 24W(RGB) | Construction: | 316 Marine Grade Stainless Steel |
| IP Rating And IK Class: | IP68 And IK08 | Working Voltage: | 24VDC |
| Control Options: | 0-10V, PWM | Approved Use: | Underwater |
| Accessories: | PVC Mounting Sleeve(included) | Luminance (lm): | Cool White=1234, Warm White=906, RGB=420 |
| High Light: | underwater swimming pool lights,recessed underwater light |
||
B4YA0657 B4YA0618 6 * 2W Underwater LED Pool Lights Made of 316 Marine Grade Stainless Steel
Features and Benefits:
1. 24VDC working voltage, safe to use;
2. Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture;
3. Built-in Radiator helps prolong lifespan of LEDs;
4. Made of molding 316 Stainless Steel resistant to corrosio;
5. IP68 Waterproof, can be submersed and installed into water, depth less than 1meter;
6. Optional lens: Symmetrical or asymmetrical lens;
7. Easy to install by Recessed PVC mounting Sleeve (included).
Warning:
Must be installed underwater to prevent the light from burning up because of over-heating.
Material specifications
| Front cover&Housing | Molding shaped sus 316L# stainless steel housing |
| Gasket | EPDM gasket |
| Glass | Step tempered glass. T=9mm |
| Lens | Optical lens, efficiency≥85% |
| Cable gland | IP-68 PG-11 copper with nickel-coated |
| PCB | Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk |
| Driver | Constant current output Single color LED=1-circuit output RGB 3in1 LED=3-circuit output |
| Application environment: | Temperature of water between -20℃~40℃, less than 1 meter depth. |
| Power cable | H07RN-F 2X1.0mm^2 L=3m (for Single color) H07RN-F 4X1.0mm^2 L=3m (for RGB) |
| Mounting sleeve | PVC |
Technical Information:
| Item No. | Light Source | Lens |
Beam Angle |
Input Voltage (V) |
Typical Operating Current(mA) |
Typical Power (W) |
Typical Luminance (lm) |
IK Rate |
| B4YA0657 | 6*2W Osram | B32 | 30 | 24VDC | 700 | 16.8 |
Cool White=1234 Warm White=906 |
08 |
| B4YA0618 |
6*3W 3-in-1 RGB Full Color |
B8 | 25 | 24VDC |
R=300 G=350 B=350 |
24 | 420 | 08 |
Dimensional Drawing(mm):

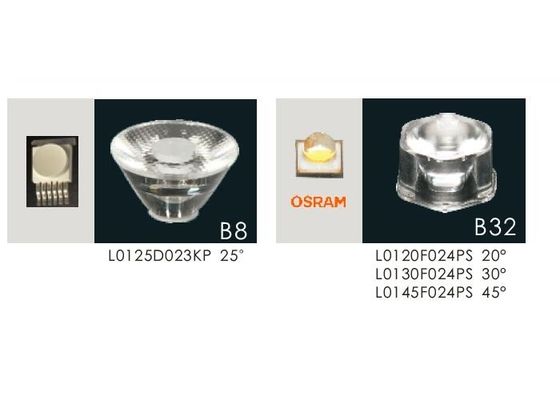

Optical Lens Options:
|
||
| Built-in Radiator |
Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture |
Water must be allowed to go inside and outside sleeve freely without leaking from the other side. |
