Product Details:
|
| Working Voltage: | DC24V | LED Brand And Quantity: | 12pcs 2W Osram/ CREE/ CITIZEN LED Or 3-in-1 RGB LED |
|---|---|---|---|
| LED Emitting Color: | Single Color Or RGB Full Color | Typ. Power(W): | 22.3W Or 27.6W |
| Typ. Luminance(lm): | Cool White=950, Warm White=807 | Housing Material: | Completely Stainless Steel SUS 316# Housing |
| Optics Lens: | Symmetrical Optics Lens, 10°/20°/25°/30°/35°/45°/60° | CRI: | 80+ |
| IP Rating And IK Class: | IP68 And IK08 | Mounting Sleeve: | PVC Mounting Sleeve |
| Front Cover: | Diameter Φ185mm, Stainless Steel SUS 316# | ||
| High Light: | underwater swimming pool lights,recessed underwater light |
||

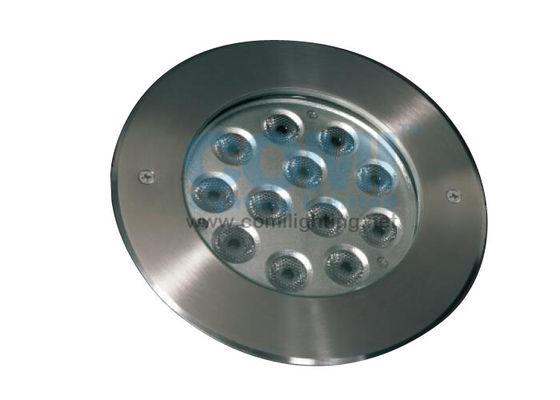

B4D1216, B4D1218(RGB 3-in-1 Full Color) 24VDC 12 * 2W LED CRI 80 + Underwater Pool Lights with Diameter Φ185 Front Cover
Completely stainless steel SUS 316# housing & Front Plate and PVC mounting Sleeve
Features and Benefits:
1. Big diameter size Φ185 and thin body 65mm(included the height of cable gland) ;
2. Made of molding 316 Stainless Steel resistant to corrosion
3. Light source is used world well-known LED brands, such as: Osram, Cree, Citizen, Epistar and etc.,
4. Dimming options include 0-10 V , PWM protocols, DALI and DMX+DMX deocder;
5. RGB type color changing works with DMX+DMX deocder;
6. Exert force area of ø10 = 210kgs ø30= 550gs ø60 =800kgs capacity loading; IK08 level;
7. Use the Silcone with good stickiness and thermal effect for reach the purpose of radiating and prevent moisture;
8. Built-in Radiator helps prolong lifespan of LEDs;
9. IP68 rating waterproof outdoor use designed and can be submersed into water less than 1meter indepth.
Applications:
LED Underwater light is the perfect solution for decorative illumination water landscapes and illumination. With an IP68 waterproof grade, it is perfect for Swimming pool, ponds, fountain, aquariums, recreational facilities, decoration underwater, park lake, water stage and other outdoor place for atmosphere decoration.
Warning:
This high-power LED housing is all stainless steel, must be installed underwater
staying cold to prevent from burning too hot.
Material Specification:
Housing: Molding shaped stainless steel housing
Gasket: EPDM gasket
Glass: Step tempered glass. T=8mm
Loading capacity: Exert force area of ø10 = 210kgs ø30= 550gs ø60 =800kgs
Lens: All-in-one optical lens, efficiency≥85%
Cable gland: IP-68 PG-11 copper and nickel coated
LED: Emitter type power LED
PCB: Excellent heat conductivity aluminum, coefficient of heat conductivity≥2.0w/mk
Driver: Constant current output, Single color LED=2-circuit output,RGB 3in1 LED=6-circuit output
Application environment: Temperature of water between -20℃~40℃, less than 1 meter depth.
Power cable: H07RN-F 2X1.0mm² L=3m (for Single color),H07RN-F 4X1.0mm² L=3m (for RGB)
Mounting sleeve: PVC Mounting Sleeve included
Technical Information:
| Item No. | Light Source | Lens |
Beam Angle |
Input Voltage (V) |
Typical Operating Current(mA) |
Typical Power (W) |
Typical Luminance (lm) |
IK Rate |
| B4Z1216 | 12*2W Osram | B32 | 30 | 24VDC | 930 | 22.5 |
Cool white=950 |
08 |
| B4Z1218 |
12*3W 3-in-1 RGB Full Color |
B8 | 25 | 24VDC |
R=250 |
R=6 G=10.6 B=11 |
R=200 G=310 B=90 |
08 |
Dimensional Drawing(mm):
