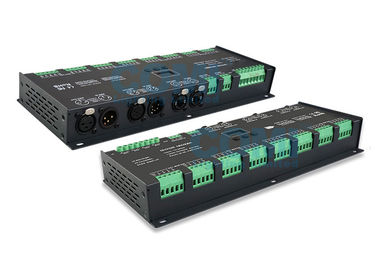

32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function

32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function

MOQ: 5pieces
Standard Packaging: L309×W127×H41(mm), 1.4KGs
Delivery Period: 3~12 days
Payment Method: T/T, L/C, Western Union, MoneyGram
Supply Capacity: 100000pcs per month
Detail Information
Place of Origin
Guangdong China
Brand Name
LT-Series
Certification
FCC, CE, ROHS, ISO 9001: 2008
Model Number
CL-LT-932-OLED
Item Type:
32Channels CV DMX Decoder
Input Signal:
DMX512/ RDM
Input Voltage:
DC12V~DC24V
Ax Load Current:
3A ×32CH Max. 96A
Max Output Power:
(0~36W...72W) X32CH Max.2304W
DMX512 Socket:
XLR-3, XLR-5, RJ45, Green Terminal
Control Mode:
DIM/CT/RGB/RGBW
DIM Curve:
0.1~9.9
Gray Scale Level:
8bit(256 Levels)/16bit(65536 Levels)
Photoelectric Isolation:
Yes
Dimension:
L300×W122×H39(mm)
Warranty:
5 Years
Minimum Order Quantity:
5pieces
Packaging Details:
L309×W127×H41(mm), 1.4KGs
Delivery Time:
3~12 days
Payment Terms:
T/T, L/C, Western Union, MoneyGram
Supply Ability:
100000pcs per month
High Light:

dmx decoder controller

,

led dmx decoder

Product Description

CL-LT-932-OLED 12~24VDC 32Channels*3A Up to 2304W DIM/ CT/ RGB/ RGBW CV DMX Decoder With Signal Amplifier Function and Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR,RJ45 and green terminal









Product Introduction:

1. Designed for Hi-power multiple channels application, 32 channels output, and Max. 3A current per channel, up to 2304W output power.

2. Easy operation with OLED screen and the touch buttons.

3. 4 kinds of mode optional: single color, color temperature, RGB, RGBW.

4. Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR,RJ45 and green terminal (with signal amplifier function).

5. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.

6. With photoelectric isolation function.

7. With shortcut protection and over load protection, as well as warning function when fault.

8. With fast self-testing function.

9. 16bit / 8bit resolution optional.

10. Multiple dimming curve (0.1~9.9) optional.









Product parameter:

Input signal DMX512/RDM
Input voltage DC12V~DC24V
Max load current 3A ×32CH Max. 96A
Max output power (0~36W...72W) x32CH Max.2304W
DMX512 socket XLR-3, XLR-5, RJ45, Green terminal
Control mode DIM/CT/RGB/RGBW
DIM Curve 0.1~9.9
Gray scale level 8bit(256 levels)/16bit(65536 levels)
Photoelectric Isolation Yes
Working temperature -30℃~65℃
Dimension L300×W122×H39(mm)
Package Size L309×W127×H41(mm)
Weight (G.W) 1400g








32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 0

32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 1





16bit / 8bit Resolution and Multiple Dimming Curve Optional:

32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 2









Dimensional Drawing(mm):



32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 3







32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 4

   32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 5



32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 6

32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 7

32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 8

32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 9

32CH *3A 2304W LED Controller CV DMX Decoder With Signal Amplifier Function 10
